tea bag packing machine

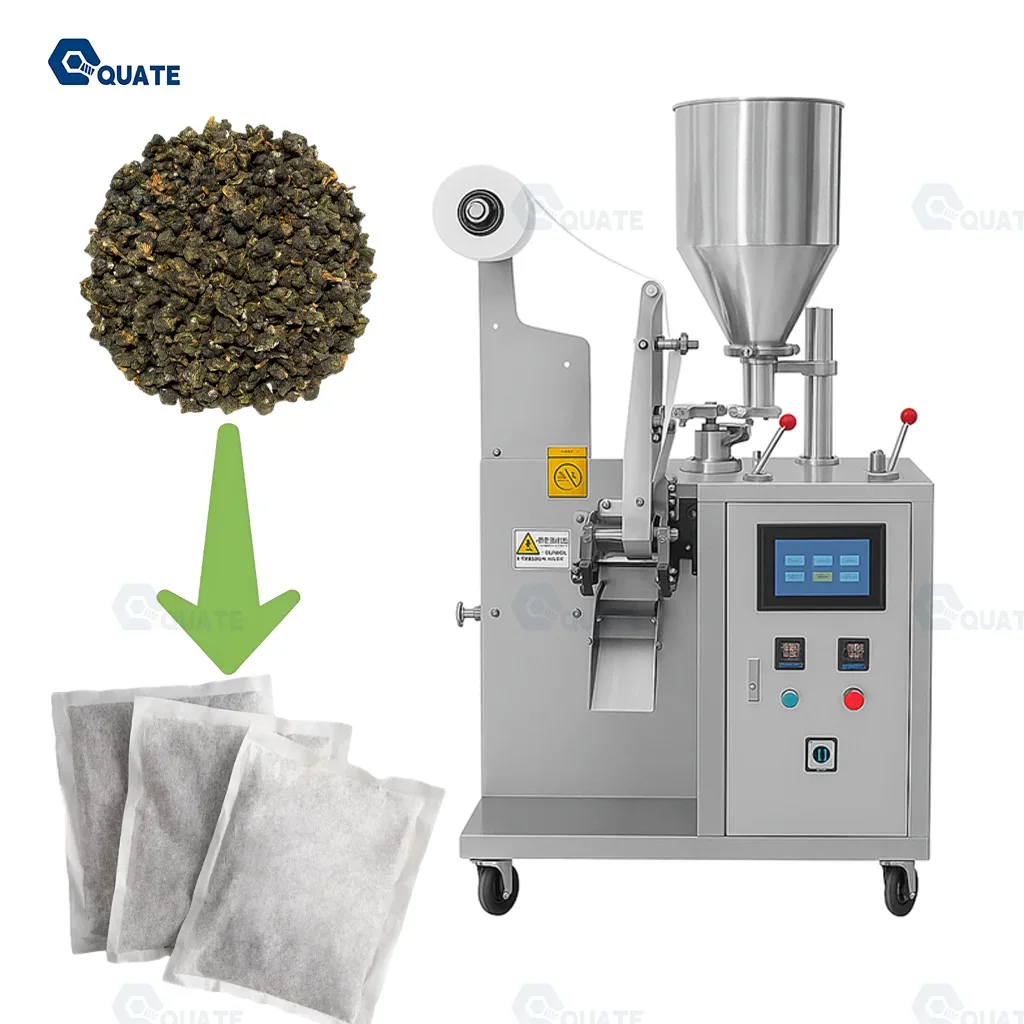

The DCK-10 Automatic Tea Bag Packing Machine is designed for packaging loose tea, broken tea, herbal tea, medicinal tea, coffee and similar free-flowing materials into filter paper tea bags with string and tag. It automatically completes bag forming, measuring, filling, sealing, cutting and counting, helping tea producers improve packaging efficiency and maintain consistent bag quality.
Model: DCK-10
Product Video
Product Overview
The DCK-10 Automatic Tea Bag Packing Machine is a compact and efficient packaging solution for producing rectangular filter paper tea bags with string and tag. It is suitable for small and medium-sized tea factories, herbal product manufacturers, coffee processors and contract packaging companies.
The machine integrates multiple packaging processes into one automated system, including filter paper feeding, bag forming, material dosing, filling, string attachment, heat sealing, cutting and finished-bag counting. With an adjustable filling range of 1–10 g and a production speed of up to 60 bags per minute, the DCK-10 provides a practical balance between output, packaging accuracy and ease of operation.
Its stainless steel contact parts help maintain product cleanliness, while the compact vertical structure saves workshop space. Different bag sizes and filling weights can be adjusted according to the characteristics of the product and the customer’s packaging requirements.

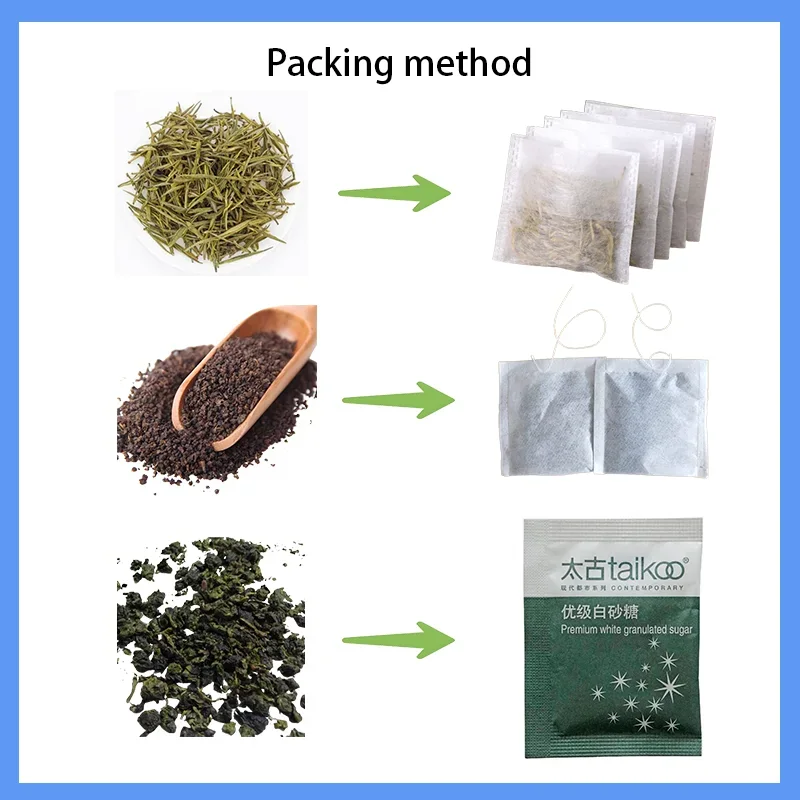

Applications
The DCK-10 Tea Bag Packing Machine is suitable for packaging a wide range of free-flowing tea and beverage materials, including:
- Green tea
- Black tea
- Broken tea
- Herbal tea
- Medicinal tea
- Flower tea
- Fruit tea blends
- Loose-leaf tea
- Coffee granules
- Dried herbs
- Plant-based infusion products
- Similar small granular materials
Note: For very fine powders, sticky materials or products with irregular particle sizes, a material test is recommended before confirming the machine configuration.
Main Features
Main Features
- Fully Automatic Packaging Process
Automatically completes bag forming, measuring, filling, sealing, cutting and counting in one continuous process. - Tea Bag with String and Tag
Produces convenient filter paper tea bags equipped with string and tag for easy brewing and removal. - Adjustable Filling Range
Supports approximately 1–10 g per bag, making it suitable for different tea varieties and product formulations. - Stable Three-Side Sealing
Uses a three-side heat-sealing structure to produce neat, secure and consistent tea bags. - Wide Material Compatibility
Suitable for broken tea, herbal tea, medicinal tea, flower tea, coffee and similar free-flowing products. - Compact Vertical Design
The space-saving structure is suitable for small and medium-sized production workshops. - Efficient Production Capacity
Delivers approximately 30–60 finished tea bags per minute, depending on the material and bag size. - Easy Operation and Adjustment
Filling weight, bag length and operating parameters can be adjusted according to production requirements. - Automatic Counting Function
Counts finished tea bags automatically, making downstream collection and secondary packaging easier. - Food-Contact Stainless Steel Parts
Product-contact components are designed for convenient cleaning and hygienic tea packaging.

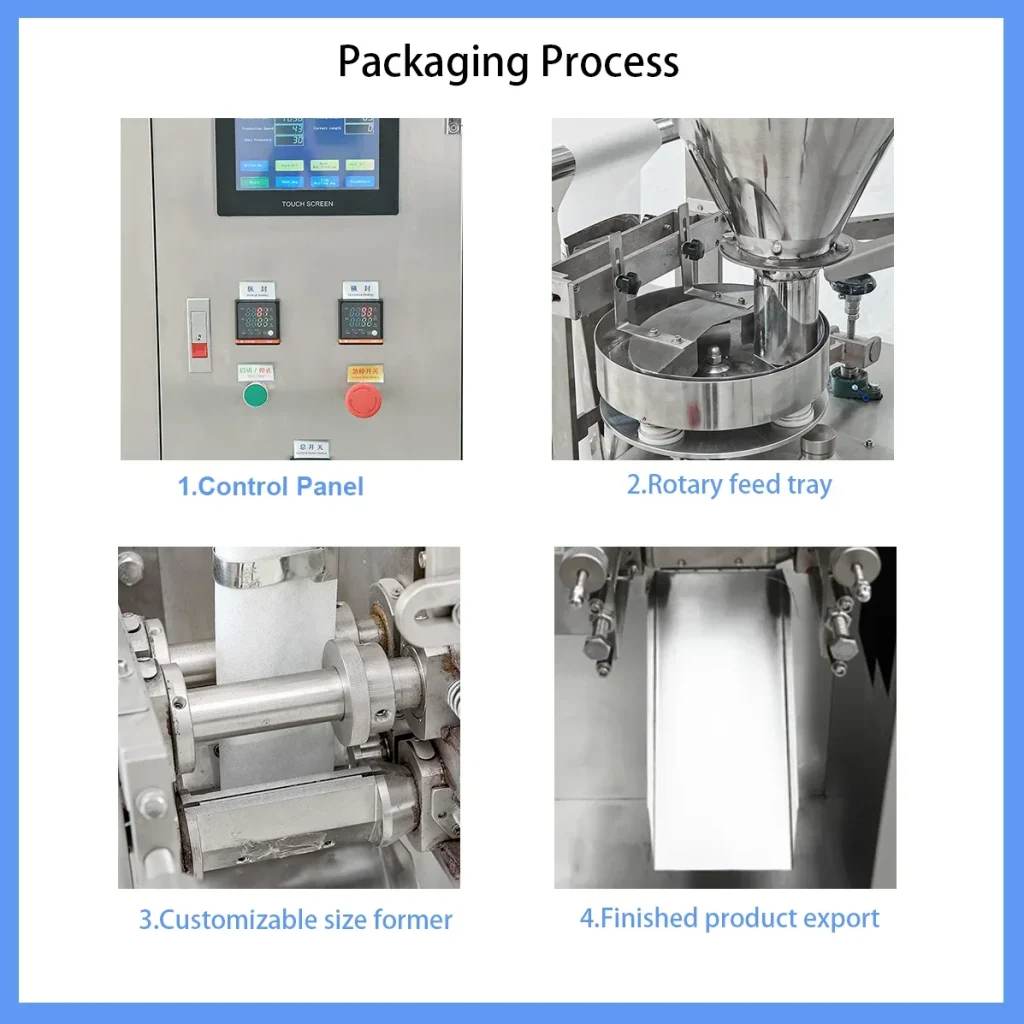

Working Principle
Working Principle
The packaging material is unwound from the filter paper roll and guided into the bag-forming section. At the same time, tea or other free-flowing material is fed from the upper hopper into the measuring system.
The machine measures the preset quantity of material and fills it into the formed filter paper bag. The string and tag are attached during the packaging process. The tea bag is then heat-sealed on three sides, cut to the required length and discharged automatically.
The complete operating sequence includes:
Filter Paper Feeding → Bag Forming → Material Measuring → Filling → String and Tag Attachment → Heat Sealing → Cutting → Counting → Finished Tea Bag Discharge

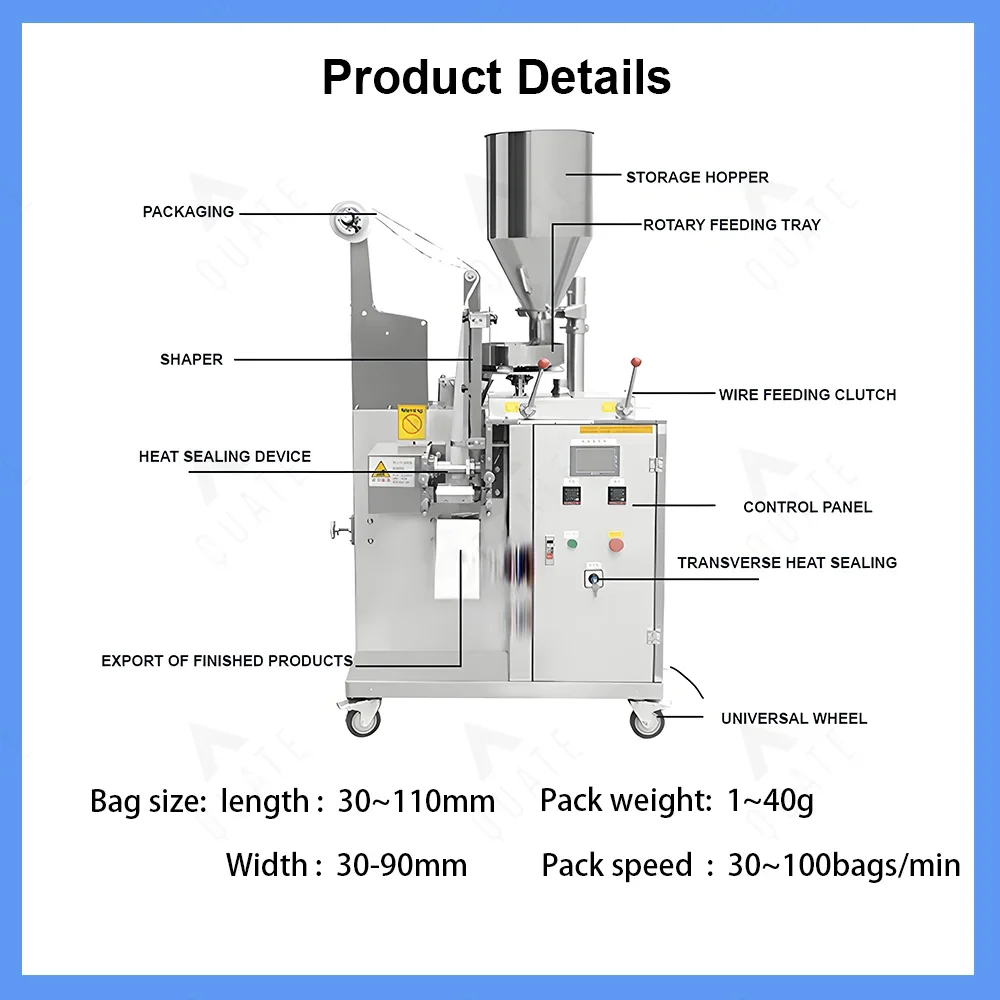

Technical Parameters
| Parameter | Specification |
|---|---|
| Model | DCK-10 |
| Machine Type | Automatic Tea Bag Packing Machine |
| Suitable Products | Tea, herbal tea, medicinal tea, coffee and similar materials |
| Filling Range | 1–10 g |
| Volume Range | Approximately 0.6–26 ml |
| Packing Speed | 30–60 bags/min |
| Bag Length | 50–80 mm |
| Bag Width | 45–80 mm |
| Standard Bag Type | Rectangular filter tea bag with string and tag |
| Sealing Type | Three-Side Heat Sealing |
| Packing Material | Tea filter paper and cotton thread |
| Voltage | AC 220 V / 50 Hz |
| Voltage Customization | Available according to destination requirements |
| Total Power | 1.6 kW |
| Machine Dimensions | 900 × 750 × 1750 mm |
| Machine Weight | Approximately 260 kg |
| Control Mode | Automatic control |
| Filling Material Type | Free-flowing granules and selected powder materials |
Packaging & Shipping
Before shipment, the machine will be cleaned, inspected and tested to ensure that all major functions operate correctly.
The standard packaging procedure includes:
- Protective film covering for the machine surface
- Secure fixing of movable components
- Moisture-resistant internal protection
- Reinforced export-standard wooden case
- Machine firmly secured inside the case
- Operation manual and basic accessories packed together
- Packaging photos available before shipment
The machine can be shipped by sea, air or rail according to the destination, delivery schedule and customer requirements. Sea freight is generally recommended for standard international orders because of the machine’s size and weight.
Shipping cost, delivery time and import documentation will be confirmed according to the final destination port or delivery address.
FAQ
Q1: What products can this tea bag packing machine pack?
A: The machine is suitable for broken tea, green tea, black tea, herbal tea, medicinal tea, flower tea, coffee granules and other similar free-flowing materials.
Q2: What is the filling range of the DCK-10?
A: The standard filling range is approximately 1–10 g per bag. The actual filling accuracy depends on the material density, particle size and flowability.
Q3: Does the machine automatically attach the string and tag?
A: Yes. The DCK-10 is designed to produce filter paper tea bags with string and tag automatically.
Q4: What type of tea bag does the machine produce?
A: The standard machine produces rectangular filter paper tea bags with three-side heat sealing, string and tag.
Q5: Can the bag size be adjusted?
A: Yes. The standard bag length is adjustable from 50 to 80 mm, while the bag width range is approximately 45 to 80 mm. The final size should be confirmed according to the filter paper specification.
Q6: What is the production speed?
A: The packaging speed is approximately 30–60 bags per minute. Actual output may vary depending on the filling weight, material characteristics and bag dimensions.
Q7: Can the voltage be customized?
A: Yes. The standard power supply is AC 220 V, 50 Hz. Voltage and electrical components can be configured according to the customer’s local power supply.
Q8: Can it pack very fine tea powder?
A: The machine is mainly recommended for free-flowing broken tea, herbal materials and small granules. For very fine powder, we recommend sending a material sample for testing before production.
Q9: Does this machine also pack the outer envelope?
A: The standard DCK-10 configuration is mainly used for producing the inner filter tea bag with string and tag. An outer envelope packaging solution should be confirmed separately.
Q10: Can you test the machine with our tea before shipment?
A: Yes. Customers can provide material details, photos, videos or samples. A packing test can be arranged to confirm filling performance and finished-bag quality.
Q11: What information is required to recommend the correct configuration?
A: Please provide the product name, filling weight per bag, material particle size, required bag dimensions, packaging material and local voltage.
Q12: How is the machine packed for international delivery?
A: The machine is protected and fixed inside an export-standard wooden case to reduce the risk of damage during transportation.
